推送宝针对国内无法访问 Google 的服务以及无法满足 GCM 的推送条件,推送宝构建了自己的实时推送服务TPS(Tuisongbao Push Service)。 推送宝的 Android SDK 使用专属的长链接,可以保证实时的将推送消息推送到设备客户端。同时,多个安装推送宝 SDK 的 app 可以共享同一条推送通道,节省用户的电量以及网络流量。
通过下载 SDK页面下载 Android SDK。
SDK 中主要包括以下内容:
jar
文件,armeabi/libpush-jni.so
和 armeabi-v7a/libpush-jni.so
复制到 libs
目录下(如果没有,则新建libs
)。-> Property -> Java BuildPath
,添加对tuisongbao_push_android_v{version}.jar
的引用。armeabi/libpush-jni.so
和 armeabi-v7a/libpush-jni.so
复制到 app/src/main/jniLibs
目录下(如果没有,则新建 jniLibs
)。jar
文件复制到 app/libs
目录下(如果没有,则新建 libs
)。Gradle projects
的窗口中,点击左上角的 Refresh all gradle projects
,加载已添加的依赖。在 assets
(Android Studio 是在 app/src/main/assets
) 目录下新建 pushconfig.properties
文件并填写以下内容:
MIPUSH_APP_ID = 654321
MIPUSH_APP_KEY = 987654
PUSH_APP_ID = 123456
PUSH_APP_KEY = myappkey1234
LOCATION_TRACK = true
SDK_SECRET = 012345678901234567890123
PUSH_MSG_PROCESSOR = com.tuisongbao.push.demo.app.NotificationIntentService
DEBUG_SWITCH = true
说明:
PUSH_APP_ID
:推送宝网站上注册的 APP ID。PUSH_APP_KEY
:对于从老版本迁移过来的 APP,需要设置此参数为老版本 APP 的 APP Key。 否则,请 删除 此参数。LOCATION_TRACK
: 地理位置追踪选项。推送宝会采集用户的地理位置,并可以在推送宝的网站上查看用户的地理分布;地理围栏的推送也基于此选项。注意,令此选项生效还需要在 AndroidManifest.xml
文件中添加地理位置相关的 permission
和 Service
,如何使用基于地理位置的推送SDK_SECRET
:SDK API 基本身份验证时使用的 password
,可以从 APP ID 的页面上获得。MIPUSH_APP_ID
和MIPUSH_APP_KEY
:小米推送服务的 App Id 和 App Key,如何使用小米推送?PUSH_MSG_PROCESSOR
: 自定义消息处理服务,需要与 AndroidManifest.xml
中的声明一致,结合该示例,在 AndroidManifest.xml
文件中应该有:
<service android:name="com.tuisongbao.push.demo.app.NotificationIntentService" />
DEBUG_SWITCH
: 调试日志开关。
AndoirdManifest.xml
声明 Android 版本,推送宝 SDK 可以支持 Android2.2(api 8)以上所有版本,xxx
是一个 int
值,表示开发者开发应用时主要针对哪个 Android 版本进行开发的。Android Studio 的开发者请在 build.gradle
中配置。
<uses-sdk android:minSdkVersion="8" android:targetSdkVersion="xxx" />
加入自定义权限,这样应用程序才可以接收到来自推送宝的推送:
<permission android:name="{my_app_package}.permission.PUSH" android:protectionLevel="signature" />
<uses-permission android:name="{my_app_package}.permission.PUSH" />
这里定义的权限必须是{my_app_package}.permission.PUSH
,其中my_app_package
是你的应用程序的包名。
加入以下权限:
<!-- TPS 推送需要网络连接 -->
<uses-permission android:name="android.permission.INTERNET" />
<!-- 接收到新的推送消息,需要唤醒应用程序的进程 -->
<uses-permission android:name="android.permission.WAKE_LOCK" />
<!-- 推送宝需要根据以下信息产生设备的唯一识别码 -->
<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<!-- 开机启动和读取网络状态,使得 Service 运行稳定 -->
<uses-permission android:name="android.permission.RECEIVE_BOOT_COMPLETED" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<!-- 允许收到通知时设置振动 -->
<uses-permission android:name="android.permission.VIBRATE" />
<!-- 点击消息时打开应用 -->
<uses-permission android:name="android.permission.GET_TASKS" />
<!-- 用于记录日志 -->
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<!-- 可选,建议配置,推送宝会跟踪用户的地理位置,开发者则可以进行基于区域的推送 -->
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
加入广播接收声明,用来接收从 Android 后台发出的消息:
<receiver
android:name="com.tuisongbao.push.PushBroadcastReceiver" >
<intent-filter android:priority="1000">
<action android:name="android.intent.action.BOOT_COMPLETED" />
<action android:name="android.intent.action.USER_PRESENT" />
<action android:name="android.net.conn.CONNECTIVITY_CHANGE" />
</intent-filter>
<intent-filter android:priority="1000" >
<action android:name="com.tuisongbao.push.action.RECEIVE" />
<action android:name="com.tuisongbao.push.action.GEOFENCE" />
</intent-filter>
</receiver>
声明用于处理推送消息的 Intent Service
:
<service android:name="com.tuisongbao.push.service.NotificationIntentService">
</service>
注意:如果你的应用程序仅需要通过 Android 的通知中心显示推送的消息正文,可以保留 NotificationIntentService
的配置,否则,替换为自定义的 Service
,该 Service
必须继承于 NotificationIntentService
。同时,这里的 Service
须与 pushconfig.properties
中配置的 PUSH_MSG_PROCESSOR
相同:
声明推送宝后台服务:
<service
android:name="com.tuisongbao.push.tps.PushService"
android:process=":tps" >
<intent-filter>
<action android:name="com.tuisongbao.push.tps.PushService" />
</intent-filter>
</service>
支持 RichMedia
的消息需要声明相应的 Activity
,不需要支持时可以不声明:
<activity
android:name="com.tuisongbao.push.richmedia.RichMediaActivity"
android:configChanges="keyboardHidden|orientation|screenLayout|uiMode|screenSize"
android:theme="@android:style/Theme.NoTitleBar" >
</activity>
加入 LocationService
的声明,用来监测地理围栏的进出,不需要支持时可以不声明:
<service
android:name="com.tuisongbao.push.location.PushLocationService"
android:process=":location" >
</service>
开发者需要在应用程序启动的时候,调用推送宝的初始化代码PushManager.init(Context)
。我们推荐在 Application
的onCreate
方法里调用推送宝 SDK 的初始化方法,具体实现可以参照 Demo 中的做法。
public class MyApplication extends Application
{
@Override
public void onCreate()
{
super.onCreate();
//在你的 App 的 onCreate 方法里调用该方法,初始化推送宝的本地服务
PushManager.init(this);
}
}
之后在AndroidManifest.xml
中配置 application
标签为你定义的名字,例如:
<application
android:name="com.mypackage.app.MyApplication"
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"
android:theme="@style/AppTheme" >
当有推送消息到达时,SDK 会发送该消息给 IntentService
去处理(异步)。默认发送给 com.tuisongbao.push.service.NotificationIntentService
, 并且会在通知栏显示最新的一条消息, 用户点击消息即可打开应用程序。 如果应用需要重新定义这个逻辑,需要做以下几件事:
IntentService
, 并使其继承于推送宝的 NotificationIntentService
public class MyMsgIntentService extends NotificationIntentService
{
@Override
protected void onMessageDelivered(HashMap<String, String> msgMap) {
// required
super.onMessageDelivered(msgMap);
String passthrough = msgMap.get(Constants.passthrough);
if (StrUtils.isEqual(passthrough, String.valueOf(true))) {
Notification myNotification = super.notification; // 这个 notification 具有高级设置的属性,即发送消息时推送宝网站上面对该消息设置的样式,点击行为等。你可以修改这个 notification 的内容以适应你的需要。
NotificationManager notificationManager = (NotificationManager) getSystemService(Context.NOTIFICATION_SERVICE);
notificationManager.notify(1, myNotification);
}
String alert = msgMap.get("body");
String title = msgMap.get("title");
String extraMsg = msgMap.get("my-extra"); // 获取自定义内容
// 你的处理逻辑
}
@Override
protected void onMessageClicked(HashMap<String, String> msgHashMap) {
// 当小米和华为的通知栏消息被点击时回调,v3.1 新增
}
@Override
protected void onGeoFenceTrigger(PushGeoFence geoFence, PushLocationManager.Event event, PushLocation location) {
super.onGeoFenceTrigger(geoFence, event, location);
}
@Override
protected void onLocationChanged(PushLocation currentLocation) {
super.onLocationChanged(currentLocation);
}
@Override
protected void onRegistered(String token, PushConfig.Service service)
{
super.onRegistered(token, service);
}
@Override
protected boolean silentNotification() {
// 对于透传消息,SDK 默认会在通知栏显示收到的通知,如果要去掉这个行为,return true 即可,默认为 false
return false;
}
}
pushconfig.properties
中的 PUSH_MSG_PROCESSOR
为 {MyMsgIntentService_class_package}.MyMsgIntentService
。AndroidManifest.xml
中与 PUSH_MSG_PROCESSOR
匹配的 IntentService
。NotificationIntentService
接口说明protected void onMessageDelivered(HashMap<String, String> msgMap)
当接收到 透传消息 时,推送宝 SDK 会回调 onMessageDelivered
方法,开发者可以在这里定义自己的消息处理逻辑。
参数说明:
HashMap msgMap
:消息内容,其中,msgMap["title"]
为消息的标题,msgMap["body"]
为消息的正文,msgMap["{key}"]
为推送者自定义的附加信息。protected void onMessageClicked(HashMap<String, String> msgMap) // v3.1 新增
当接收到 通知栏消息 时,消息会先显示在通知栏,用户点击之后 SDK 才会回调该方法。
参数说明:
HashMap msgMap
:消息内容,其中,msgMap["title"]
为消息的标题,msgMap["body"]
为消息的正文,msgMap["{key}"]
为推送者自定义的附加信息。protected void onRegistered(String token, PushConfig.Service service)
该事件用于开发者获取设备的 token
。推送宝 SDK 默认会将 token
和 service
提交到推送宝系统用于发送推送消息,如果开发者需要在自己的系统里保存一份,可以重写该方法,将 token
提交到自己的服务端。
参数说明:
String token
:推送宝分配给设备的唯一识别码。String service
:所用的推送服务,PushConfig.Service.TPS
或者PushConfig.Service.MIPUSH
。protected void onGeoFenceTrigger(PushGeoFence geoFence, PushLocationManager.Event event, PushLocation location)
参数说明:
PushGeofence geofence
:被触发的地理围栏。PushLocationManager.Event event
PushLocationManager.Event.LEAVE
或 PushLocationManager.Event.ENTER
。PushLocation location
:被触发一刻所获得的地理位置信息。protected boolean silentNotification()
SDK 默认会在通知栏中显示一条最新的通知消息,如果开发者需要改写此行为,可以重写该方法,并 return true
,推送宝 SDK 将不会显示通知,由开发者自行决定如何处理接收到的消息。
public static PushResponse registerTag(String tag);
public static PushResponse registerTags(List<String> tags);
public static void registerTagInBackground(String tag, PushCallback<PushResponse> callBack);
public static void registerTagsInBackground(List<String> tags, PushCallback<PushResponse> callBack);
API 说明
推送消息时,可以将特定的消息推送给特定的用户。为了对他们进行标识,可以给他们制定不同标签。请尽量使用英文字母,数字,下划线,中文等常用字符,以免因为字符格式导致注册标签失败。
public static PushResponse unregisterTag(String tag);
public static PushResponse unregisterTags(List<String> tags);
public static void unregisterTagInBackground(String tag, PushCallback<PushResponse> callBack);
public static void unregisterTagsInBackground(List<String> tags, PushCallback<PushResponse> callBack);
API 说明
解除指定的标签。该用户将不再收到发送给该标签的消息。
public static PushResponse registerUserVar(Map<String, String> dataMap);
public static void registerUserVarInBackground(Map<String, String> data, PushCallback<PushResponse> callBack);
API 说明
注册用户变量。使得同一个消息发给不同的设备可以产生不同的消息内容。
public static PushResponse setAlias(String alias); // v2.2.0新增
public static void setAliasInBackground(String alias, PushCallback<PushResponse> callBack);
API 说明
给设备设置别名。同一个设备只能绑定一个别名,新的别名会覆盖旧的。
public static void feedbackMessage(String nid); // v3.0新增
public static void feedbackMessageInBackground(String nid, PushCallback<PushResponse> callBack); // v3.0新增
API 说明
对收到的消息进行反馈,推送宝服务端会增加 nid
所对应的消息的 点击数 。nid
即 com_pushyun_nid
所对应的值。
加入 LocationService
的声明,并在 pushconfig.properties
文件中开启 LOCATION_TRACK
。
<service
android:name="com.tuisongbao.push.location.PushLocationService"
android:process=":location" >
</service>
更新 PushBroadcastReceiver
的配置,注册 GEOFENCE
的 broadcast
,用来接收地理围栏的触发事件。
<receiver
android:name="com.tuisongbao.push.PushBroadcastReceiver" >
<intent-filter android:priority="1000">
<action android:name="android.intent.action.BOOT_COMPLETED" />
<action android:name="android.intent.action.USER_PRESENT" />
<action android:name="android.net.conn.CONNECTIVITY_CHANGE" />
</intent-filter>
<intent-filter android:priority="1000" >
<action android:name="com.tuisongbao.push.action.RECEIVE" />
<action android:name="com.tuisongbao.push.action.GEOFENCE" />
</intent-filter>
</receiver>
我们在 NotificationIntentService
中定义了onGeofenceTrigger()
方法用来处理地理围栏的触发事件,开发者可以通过重写该接口定义自己的处理流程。
@Override
protected void onGeoFenceTrigger(PushGeoFence geoFence, PushLocationManager.Event event, PushLocation location) {
super.onGeoFenceTrigger(geoFence, event, location);
}
推送宝的 SDK 内集成了华为的推送服务( HMS-Push 服务),推送宝将其命名为 HuaweiPush
, 在 EMUI 上可以提高送达率。 如果开发者决定使用 HuaweiPush (仅在 EMUI 上生效)请遵循以下步骤, 否则请不要配置相关参数, SDK 将根据当前 ROM 类型选择相应的 Push 服务,默认使用 TPS
。
在 AndroidManifest.xml
文件中声明华为推送服务需要的 service
和 receiver
,在 application
节点下增加:
<meta-data android:name="com.huawei.hms.client.appid" android:value="{APP ID}">
</meta-data>
<provider android:name="com.huawei.hms.update.provider.UpdateProvider"
android:authorities="{my_app_package}.hms.update.provider"
android:exported="false"
android:grantUriPermissions="true" >
</provider>
<receiver android:name="com.huawei.hms.support.api.push.PushEventReceiver" >
<intent-filter>
<action android:name="com.huawei.intent.action.PUSH" />
</intent-filter>
</receiver>
<receiver android:name="com.tuisongbao.push.huawei.HWPushReceiver">
<intent-filter>
<action android:name="com.huawei.android.push.intent.REGISTRATION" />
<action android:name="com.huawei.android.push.intent.RECEIVE" />
<action android:name="com.huawei.android.push.intent.CLICK" />
<action android:name="com.huawei.intent.action.PUSH_STATE" />
</intent-filter>
</receiver>
将第 1 步中获得的 APP ID 填入 {APP ID}
,并配置 {my_app_package}

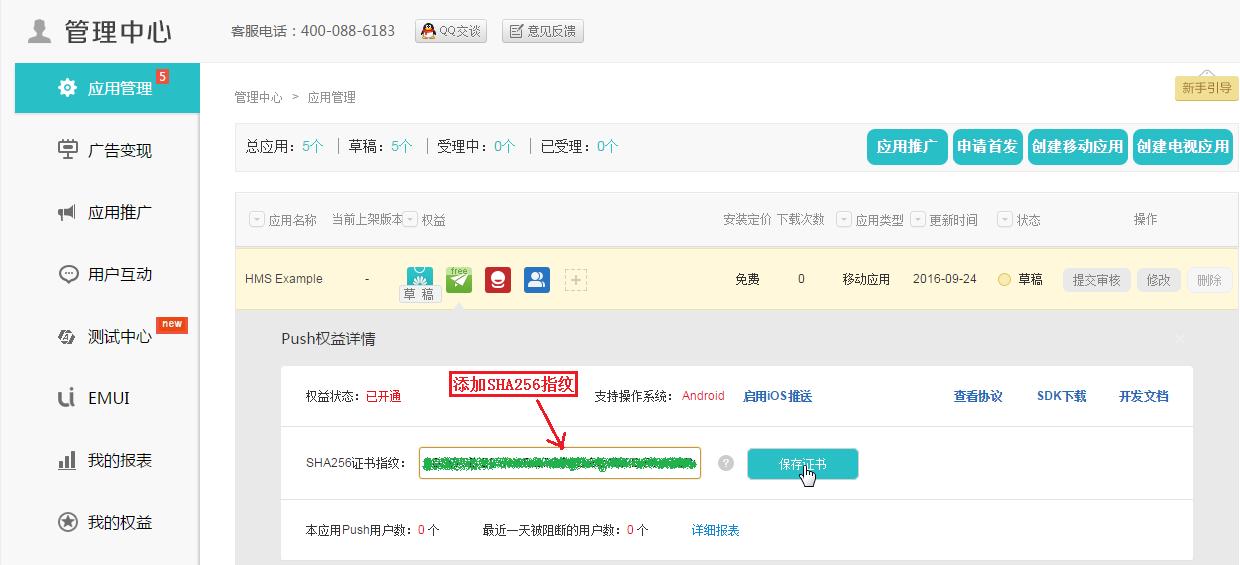

在华为开发者联盟的应用管理页面填写 SHA256 证书的指纹,图中 SHA256证书指纹
输入框旁的 ?
图标提供了获取指纹的方法。

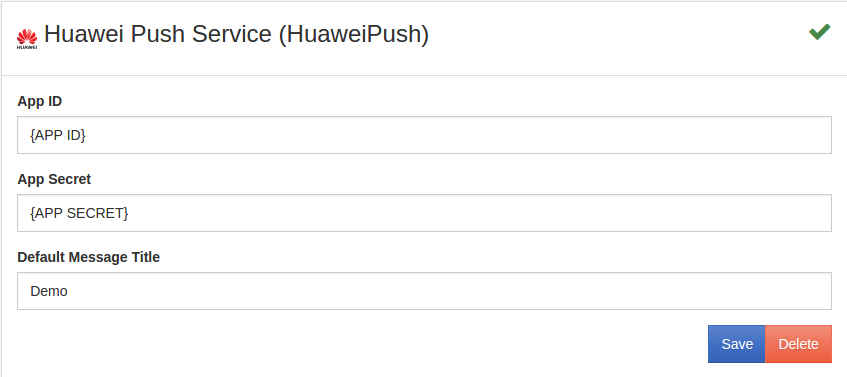

在推送宝官网上启用 HuaweiPush
,点击 设置
-> 服务
,展开 HuaweiPush
:
推送宝的 SDK 内集成了小米的推送服务( MiPush ), 在 MIUI 上可以提高送达率。 如果开发者决定使用 MiPush (仅在 MIUI 上生效)请遵循以下步骤, 否则请不要配置相关参数, SDK 将根据当前 ROM 类型选择相应的 Push 服务,默认使用 TPS
。
MiPush_SDK_Client_3_1_2_sdk.jar
。修改assets
目录下的pushconfig.properties
文件,添加小米推送所需的 App 信息:
MIPUSH_APP_ID = mymipushappId
MIPUSH_APP_KEY = mymipushappkey
在AndroidManifest.xml
文件中添加接收小米推送消息的权限:
<permission
android:name="{my_app_package}.permission.MIPUSH_RECEIVE"
android:protectionLevel="signature" />
<uses-permission android:name="{my_app_package}.permission.MIPUSH_RECEIVE" />
在AndroidManifest.xml
文件中声明小米推送服务需要的 service
和 receiver
:
<receiver
android:name="com.tuisongbao.push.xiaomi.MiMessageReceiver"
android:exported="true" >
<intent-filter>
<action android:name="com.xiaomi.mipush.RECEIVE_MESSAGE" />
</intent-filter>
<intent-filter>
<action android:name="com.xiaomi.mipush.MESSAGE_ARRIVED" />
</intent-filter>
<intent-filter>
<action android:name="com.xiaomi.mipush.ERROR" />
</intent-filter>
</receiver>
<service
android:enabled="true"
android:process=":pushservice"
android:name="com.xiaomi.push.service.XMPushService"/>
<service
android:name="com.xiaomi.push.service.XMJobService"
android:enabled="true"
android:exported="false"
android:permission="android.permission.BIND_JOB_SERVICE"
android:process=":pushservice" />
<service
android:enabled="true"
android:exported="true"
android:name="com.xiaomi.mipush.sdk.PushMessageHandler" />
<service android:enabled="true"
android:name="com.xiaomi.mipush.sdk.MessageHandleService" />
<receiver
android:exported="true"
android:name="com.xiaomi.push.service.receivers.NetworkStatusReceiver" >
<intent-filter>
<action android:name="android.net.conn.CONNECTIVITY_CHANGE" />
<category android:name="android.intent.category.DEFAULT" />
</intent-filter>
</receiver>
<receiver
android:exported="false"
android:process=":pushservice"
android:name="com.xiaomi.push.service.receivers.PingReceiver" >
<intent-filter>
<action android:name="com.xiaomi.push.PING_TIMER" />
</intent-filter>
</receiver>

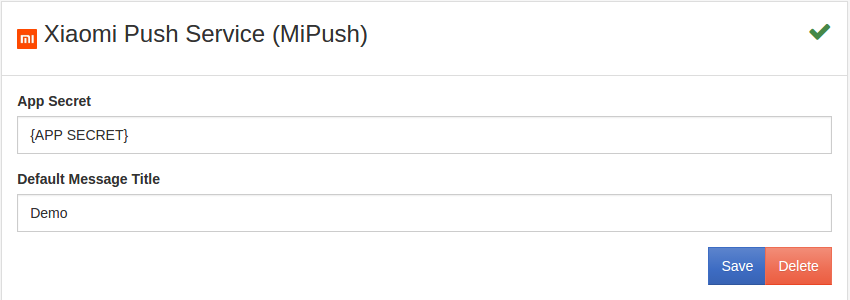

在推送宝官网上启用 MiPush
,点击 设置
-> 服务
,展开 MiPush
:
确认测试设备已经连入网络。
PushService 是否启动。常见情况是第三方的管理软件阻止了非系统服务的自启动。检查 PushService 是否在运行,设备进入设置->应用->正在运行
, 查看应用是否在列表中。
仔细核对AndroidManifest.xml
文件和pushconfig.properties
文件,确保 appkey,appid,包名等都正确。
如果以上都不能排查出问题,可以尝试生成 log 日志发送给推送宝
Linux 开发者:
在pushconfig.properties
文件中配置
DEBUG_SWITCH = true
卸载应用
在 terminal 中输入(需先安装adb
)
adb logcat -c && adb logcat > log
重新安装应用,等待应用进入初始界面,之后发送几条消息给该设备。
在 terminal 中停止(Ctrl+c
)上个脚本,然后在当前的目录下运行
cat log | grep "tuisongbao" > tuisongbao.log
把最终的tuisongbao.log
文件发送给我们。
Windows 开发者:
卸载应用
打开cmd.exe
,输入如下命令(需先安装adb
)
adb logcat -c && adb logcat com.tuisongbao.push.push.pushmanager:V com.tuisongbao.push.push.pushservice:V com.tuisongbao.push.push.pushservice.net:V com.tuisongbao.push.push:V com.tuisongbao.push.http:V com.tuisongbao.push.notification:V *:S
重新安装应用,等待应用进入初始界面,之后发送几条消息给该设备。
将cmd
中输出的 log 发送给推送宝。
如无特殊说明,直接替换 SDK 即可。
assets
目录下的pushconfig.properties
文件,添加和修改如下配置:SDK_SECRET = 012345678901234567890123
PUSH_APP_ID = 123456
PUSH_APP_KEY = myappkey1234
注意
对于从老版本迁移过来的 APP,需要设置PUSH_APP_KEY
为老版本 APP 的 APP Key。否则,请删除此参数。
用新的 SDK 里的tuisongbao.jar
,armeabi/libpush-ndk.so
和armeabi-v7a/libpush-ndk.so
替换老的文件,然后检查你的应用程序的AndroidManifest.xml
文件:
检查是否配置接收推送消息的权限:
<permission android:name="{my_app_package}.permission.PUSH"
android:protectionLevel="signature" />
<uses-permission android:name="{my_app_package}.permission.PUSH" />
修改assets
目录下的pushconfig.properties
文件,检查是否开启了 Location 跟踪:
LOCATION_TRACK = true
检查你的AndroidManifest.xml
文件,是否加入了对 Location 权限的声明:
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
检查你的AndroidManifest.xml
文件,是否针对PushBroadcastReceiver
的配置新增加了新的intent-filter
:
<intent-filter> <!--Required-->
<action android:name="android.intent.action.PACKAGE_REMOVED" />
<data android:scheme="package"/>
</intent-filter>
加入支持富媒体的Activity
的声明:
<activity
android:name="com.tuisongbao.push.richmedia.RichMediaActivity"
android:configChanges="keyboardHidden|orientation|screenLayout|uiMode|screenSize"
android:theme="@android:style/Theme.NoTitleBar" >
</activity>
